Container Trolley Set

GKS-PERFEKT Container Trolley Set with Twistlock System

Tandem trolley set with 4-point support for quick and secure connecting of trolleys with ISO-Containers
For load capacities up to 12 t, 24 t or 40 t

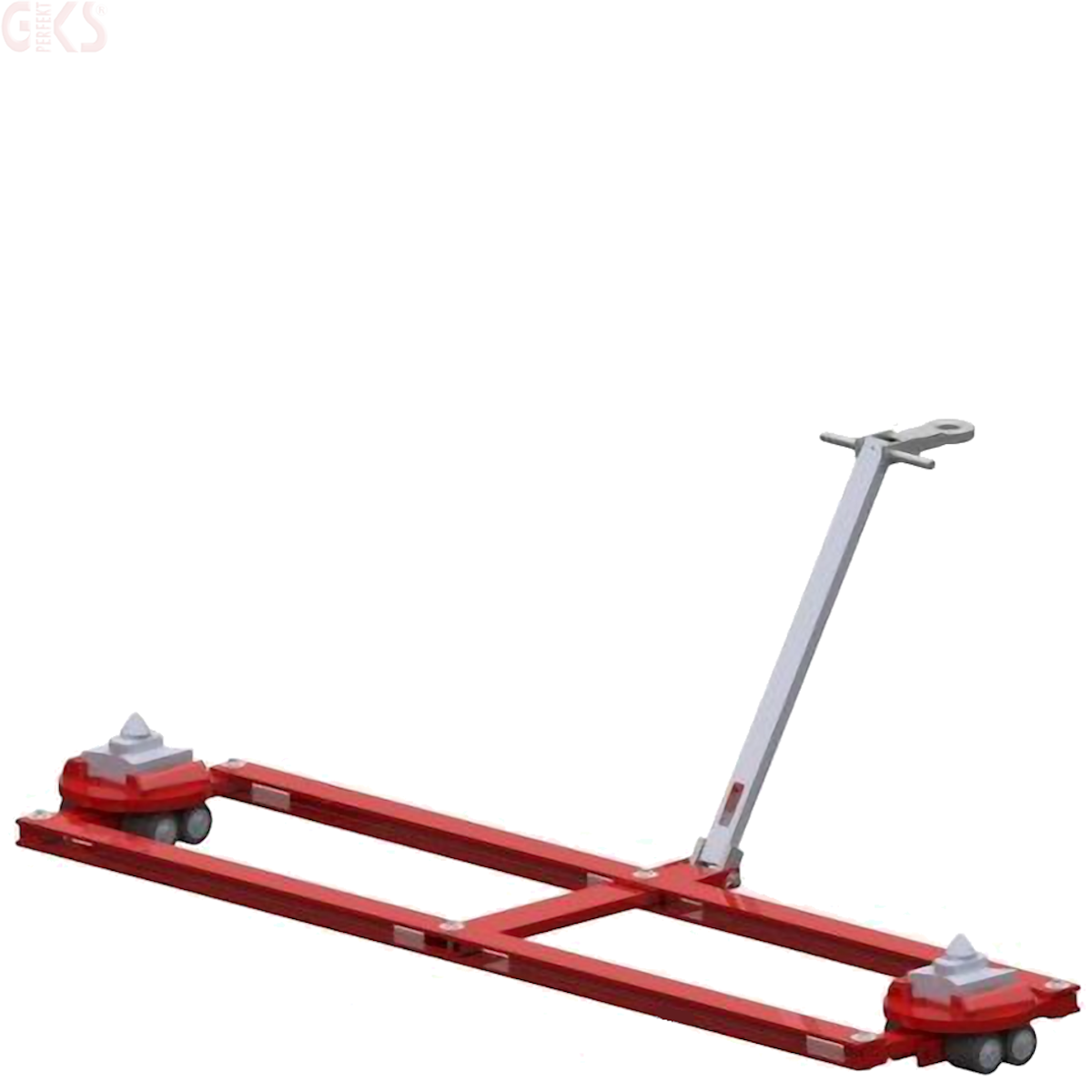

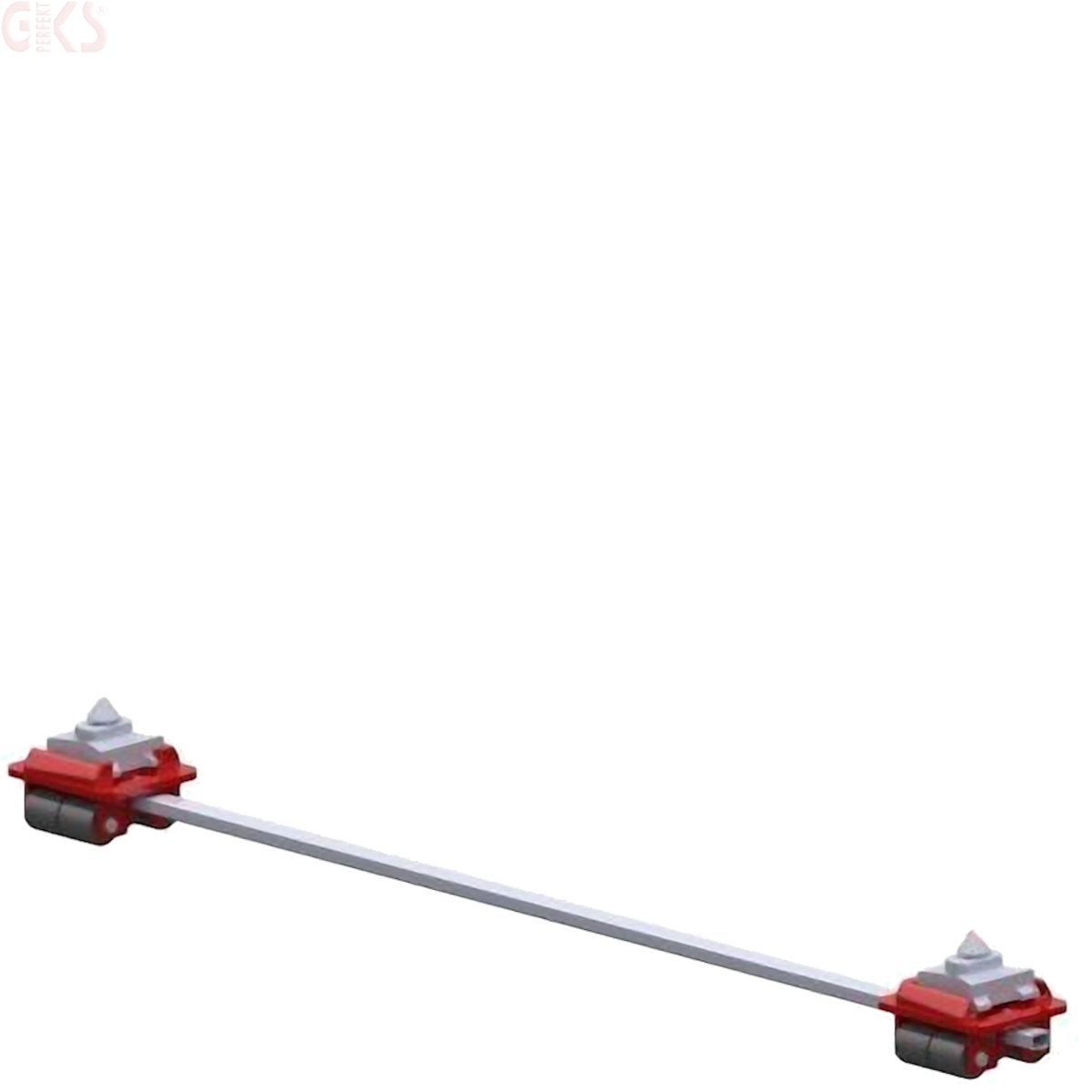

F6-c / TL6-c

	F6-c	TL6-c
Load Capacity	60 kN / 13,200 lbs (6 t)	60 kN / 13,200 lbs (6 t)
Loading Height	6.9" (176 mm)	6.9" (176 mm)
Number of Wheels (Dim.)	8 (3.3x3.3" / 85x85 mm)	8 (3.3x3.3" / 85x85 mm)
Overall Dimensions (LxW)	-	x88.9" (x2259 mm)
Tare Weight ca.	110 lbs (50 kg)	165 lbs (75 kg)
Total Load Capacity 120 kN / 26,400 lbs (12 t)
Item Number	13642	13643
*Length and width acc. to container dimensions (10 Ft, 20 ft, 40 ft,...)

Ersatzteilliste

dimension sheet

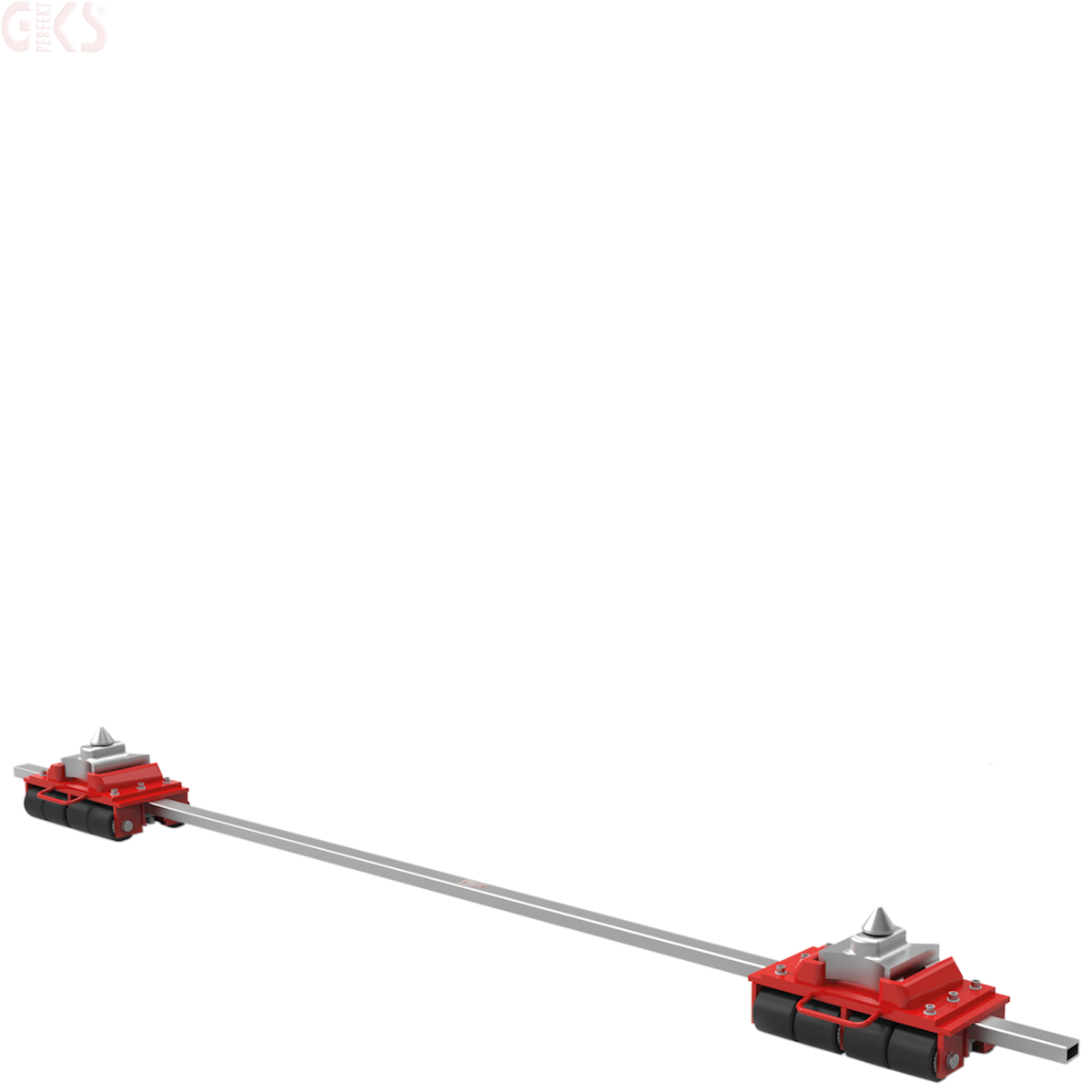

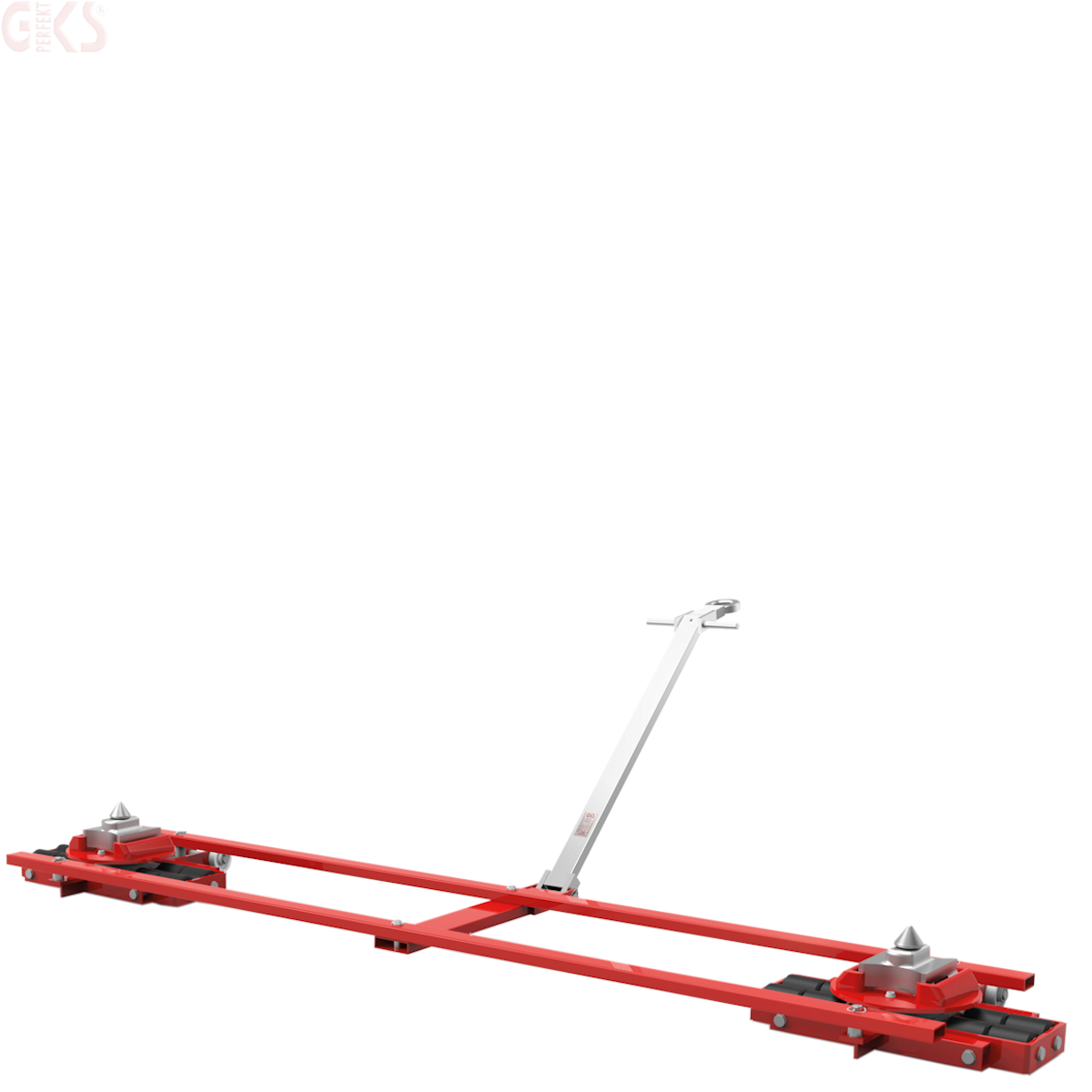

F12-c / TL12-c

	F12-c	TL12-c
Load Capacity	120 kN / 26,400 lbs (12 t)	120 kN / 26,400 lbs (12 t)
Loading Height	6.9" (176 mm)	6.9" (176 mm)
Number of Wheels (dim.)	16 (3.3x3.3" / 85x85 mm)	16 (3.3x3.3" / 85x85 mm)
Overall Dimensions (LxW)	-	x88.9" (x2259 mm)
Tare Weight ca.	134 lbs (61 kg)	342 lbs (155 kg)
Total Load Capacity 240 kN / 52,800 lbs (24 t)
Item Number	14130	14129
*Length and width acc. to container dimensions (10 Ft, 20 ft, 40 ft,...)

Ersatzteilliste

dimension sheet

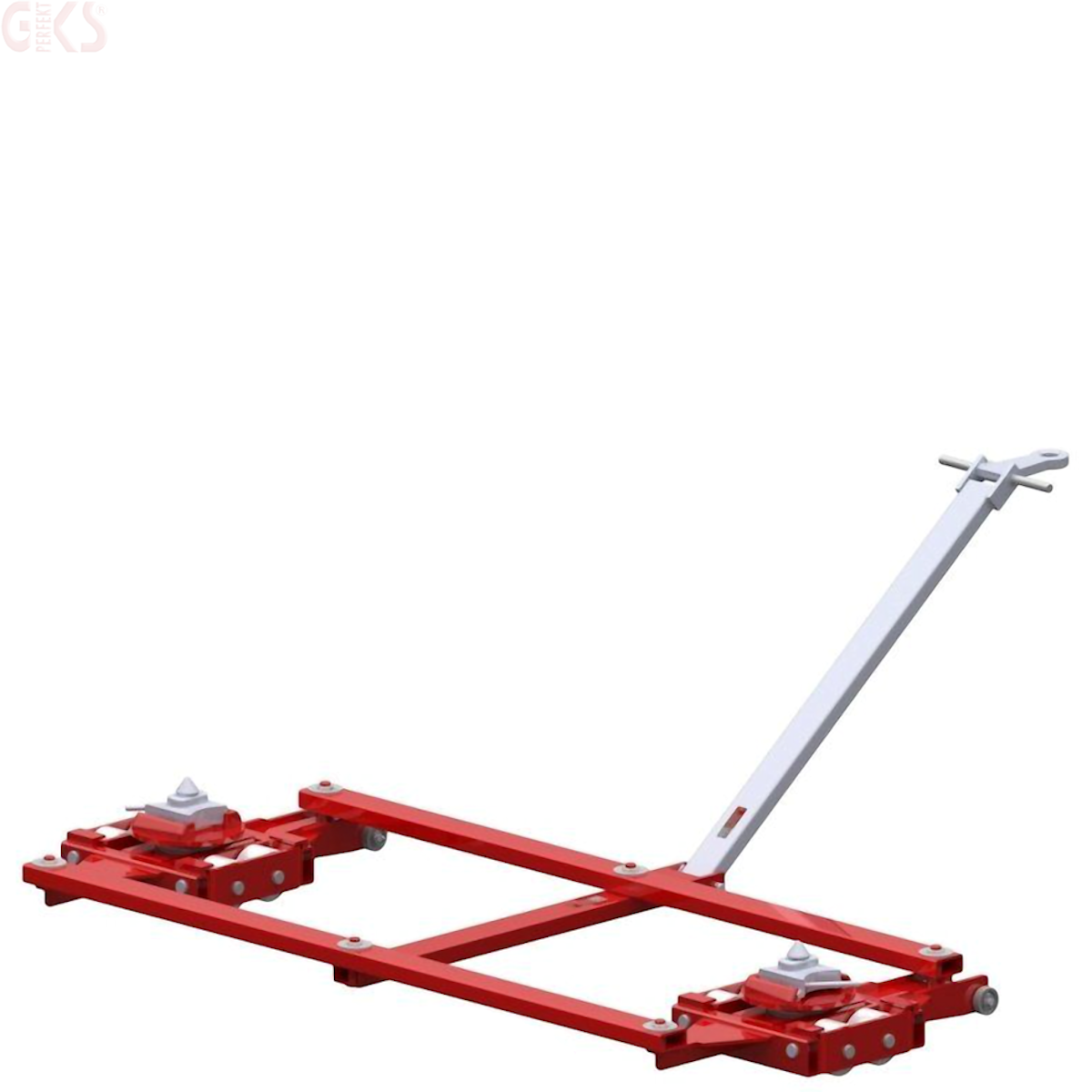

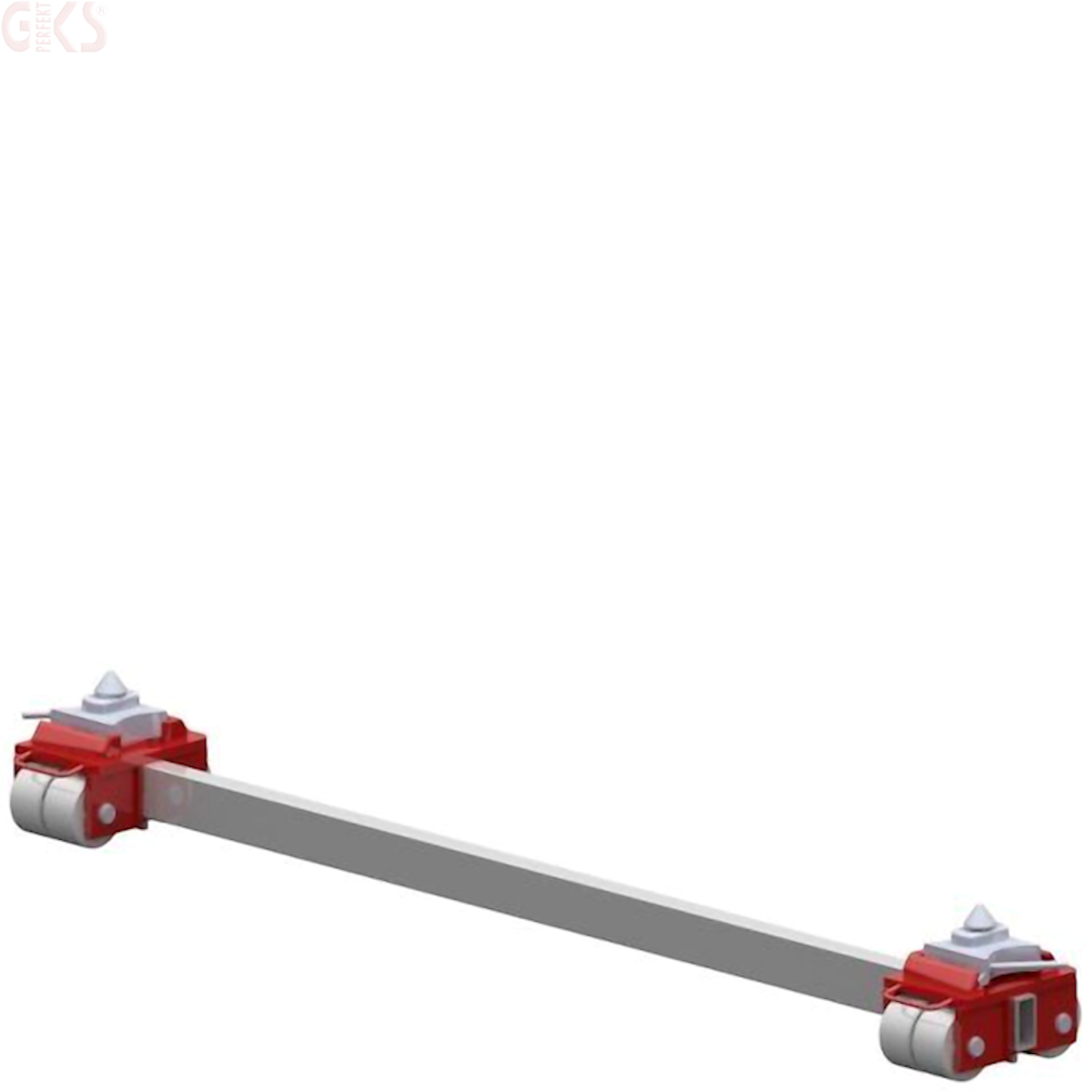

F20-c / TL20-c

	F20-c	TL20-c
Load Capacity	200 kN / 44,000 lbs (20 t)	200 kN 44,000 lbs (20 t)
Loading Height	8.9" (225 mm)	8.9" (225 mm)
Number of Wheels (dim.)	8 (5.5x3.3" / 140x85 mm)	8 (5.5x3.3" / 140x85 mm)
Overall Dimensions (LxW)	-	x88.9" (x2259 mm)
Tare Weight ca.	309 lbs (140 kg)	618 lbs (280 kg)
Total Load Capacity 400 kN / 88,000 lbs (40 t)
Item Number	13293	13294
*Length and width acc. to container dimensions (10 Ft, 20 ft, 40 ft,...)

Ersatzteilliste

dimension sheet

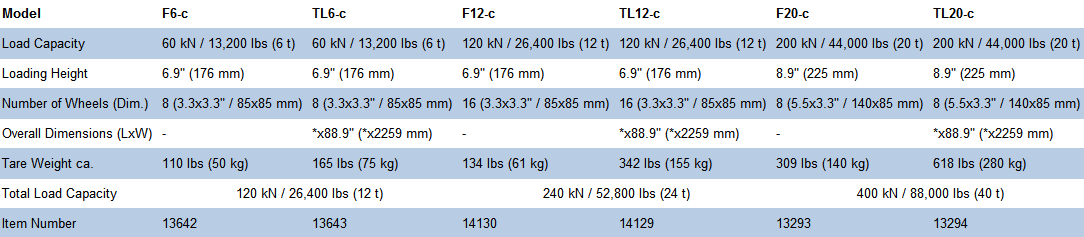

Comparison Chart

Click on chart to enlarge!
