| Full Load Capacity | 50 kN / 11,000 lbs (5 t) |
| Lifting Height | 5.5" (140 mm) |
| Loading Height | |
| Toe (min) | 1.2" (30 mm) |
| Toe (max) | 6.4" (162 mm) |
| Top Plate | 10.4" (265 mm) |
| Safety Toe Positions | 3 |
| Working Pressure | 7,542 psi (520 bar) |
| Overall Dimensions (LxWxH) | 15.6x10x10.4" (397x255x265 mm) |
| Weight | 66 lbs (30 kg) |
| Item Number | 10189 |
| Full Load Capacity | 100 kN / 22,000 lbs (10 t) |
| Lifting Height | 5.5" (140 mm) |
| Loading Height | |
| Toe (min) | 1.2" (30 mm) |
| Toe (max) | 6.9" (175 mm) |
| Top Plate | 12.5" (318 mm) |
| Safety Toe Positions | 3 |
| Working Pressure | 7,542 psi (520 bar) |
| Overall Dimensions (LxWxH) | 18.1x11x12.5" (461x280x318 mm) |
| Weight | 126 lbs (57 kg) |
| Item Number | 12378 |

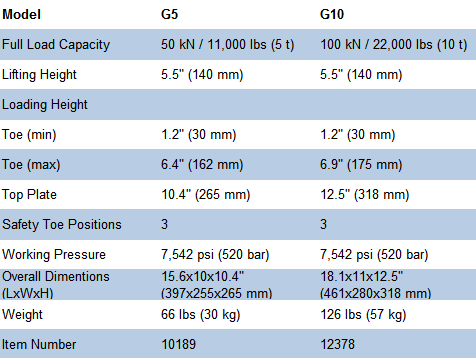

Click on chart to enlarge!
