Transport Trolleys 40 t up to 60 t



  • Heavy duty transport trolleys F/L 20 to F/L 60 for loads from 88,000 lbs (40 t) up to 265,000 lbs (120 t)

  • Extremely low loading height: 180 mm

  • All transport trolleys from F/L 20 to F/L 60 are interchangeable due to identical loading height

  • For increased stability, models F30 and bigger are equipped with two connecting rods.

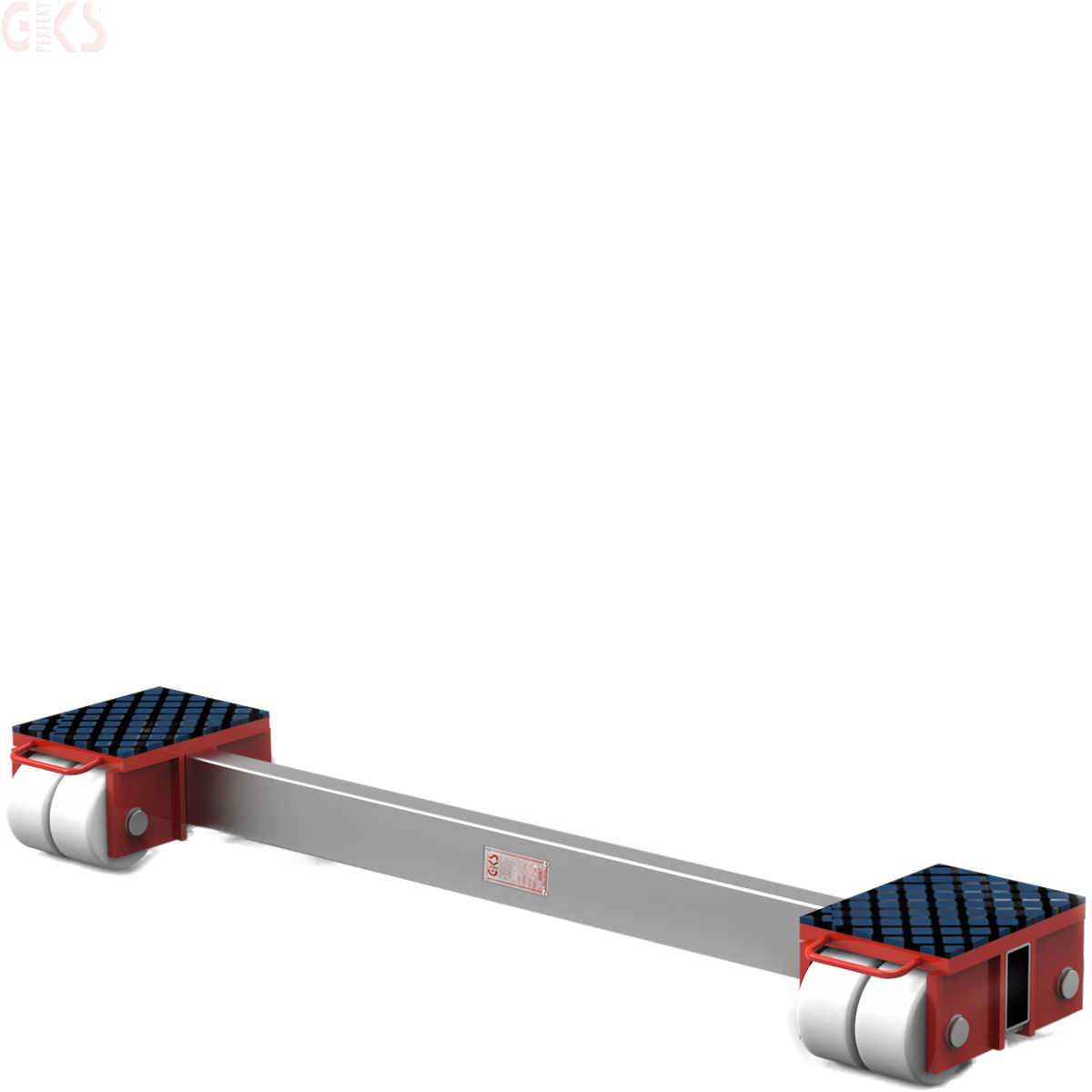

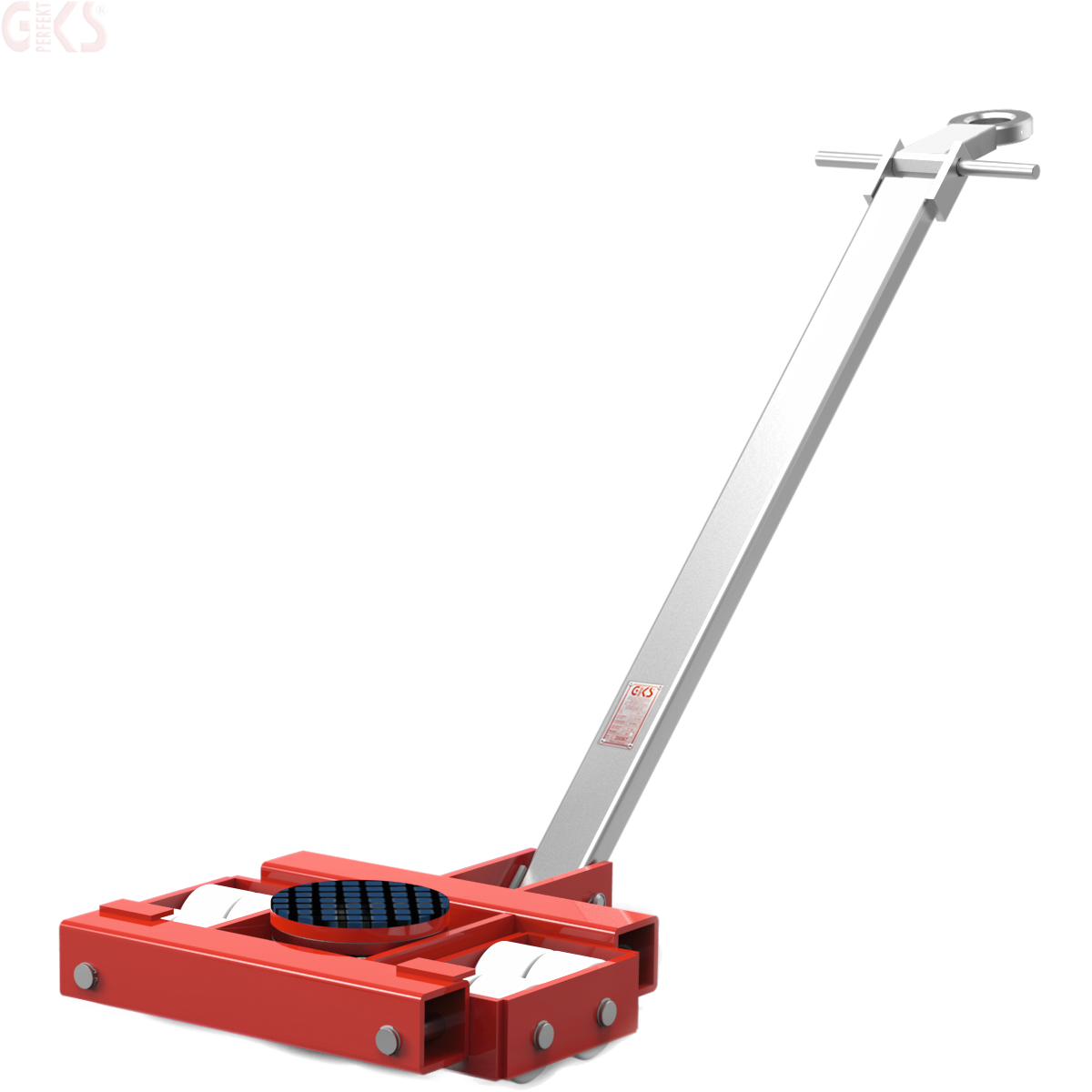

F20 / L20



F20 L20
Loading Height / no. of Wheels (5.5x3.3" / 140x85 mm) 7.1" (180 mm) / 8 7.1" (180 mm) / 8
Contact surface per cassette 11.2x8.7" (280x220 mm) -
Connecting Rod, adjustable 17.3 - 63" (440 - 1600 mm) -
Swivel Plate Ø 9.8" (250 mm), Steering angle - ± 90°
Steering Rod - 63.8" (1620 mm)
Overall Dimensions (LxW) - 29.4x32" (747x800 mm)
Tare Weight 179 lbs (81 kg) 375 lbs (170 kg)
Load Capacity 200 kN / 44,000 lbs (20 t) 200 kN / 44,000 lbs (20 t)
Total Load Capacity 400 kN / 88,000 lbs (40 t)
Item Number 11060 11061

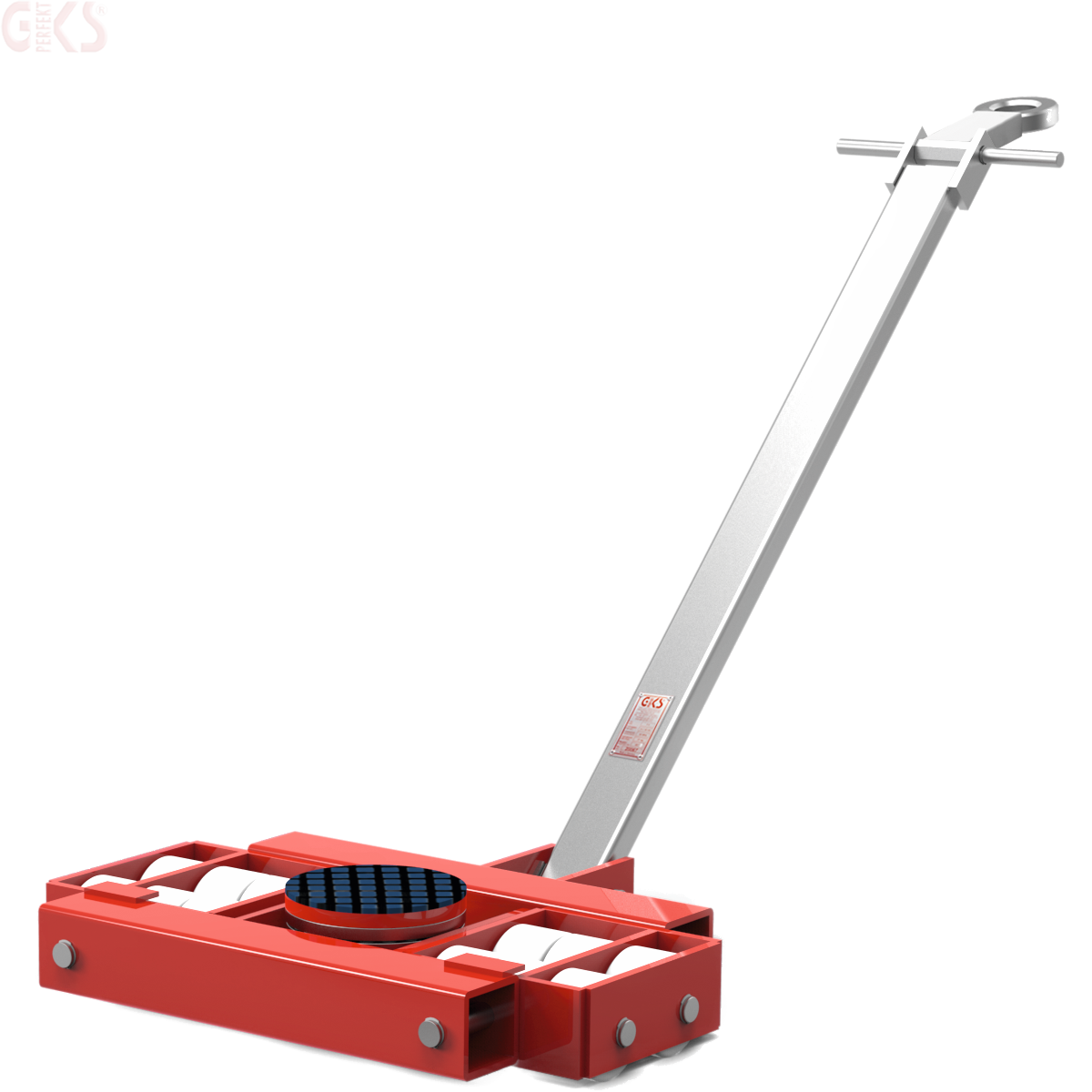

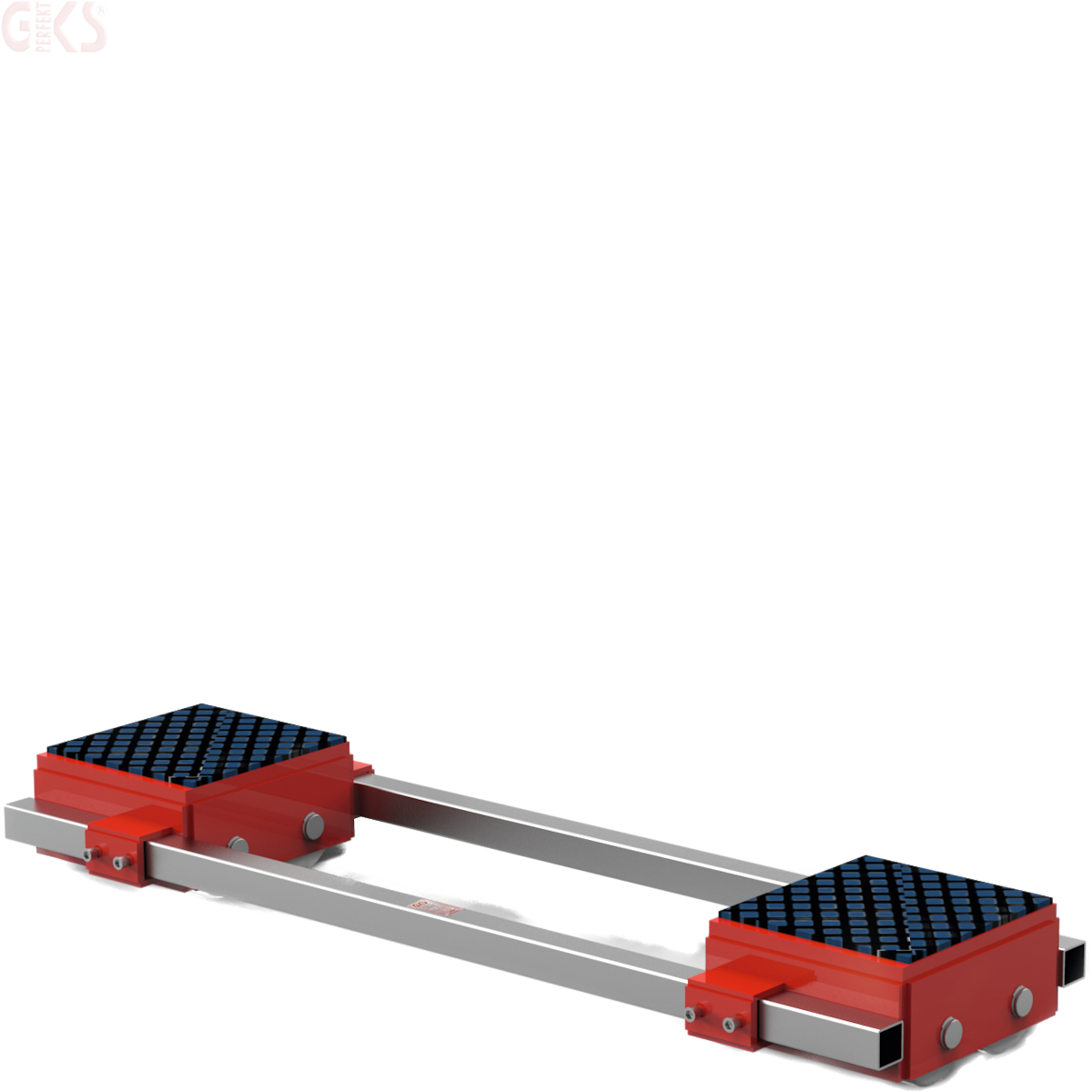

F30 / L30



F30 L30
Loading Height / no. of Wheels (5.5x3.3" / 140x85 mm) 7.1" (180 mm) / 12 7.1" (180 mm) / 12
Contact surface per cassette 11.3x11.8" (288x300 mm) -
Connecting Rod, adjustable 25.6 - 72" (650 - 1830 mm) -
Swivel Plate Ø 9.8" (250 mm), Steering angle - ± 90°
Steering Rod - 63.8" (1620 mm)
Overall Dimensions (LxW) - 32.3x37.5" (820x952 mm)
Tare Weight 282 lbs (128 kg) 472 lbs (214 kg)
Load Capacity 300 kN / 66,000 lbs (30 t) 300 kN / 66,000 lbs (30 t)
Total Load Capacity 600 kN / 132,000 lbs (60 t)
Item Number 11992 11993

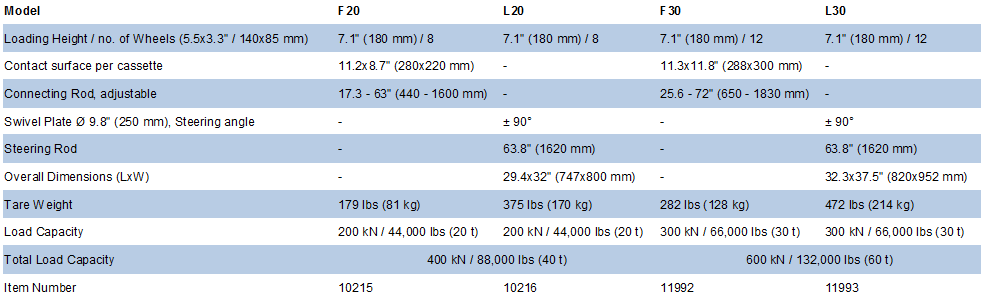

Comparison Chart

Click on chart to enlarge!
