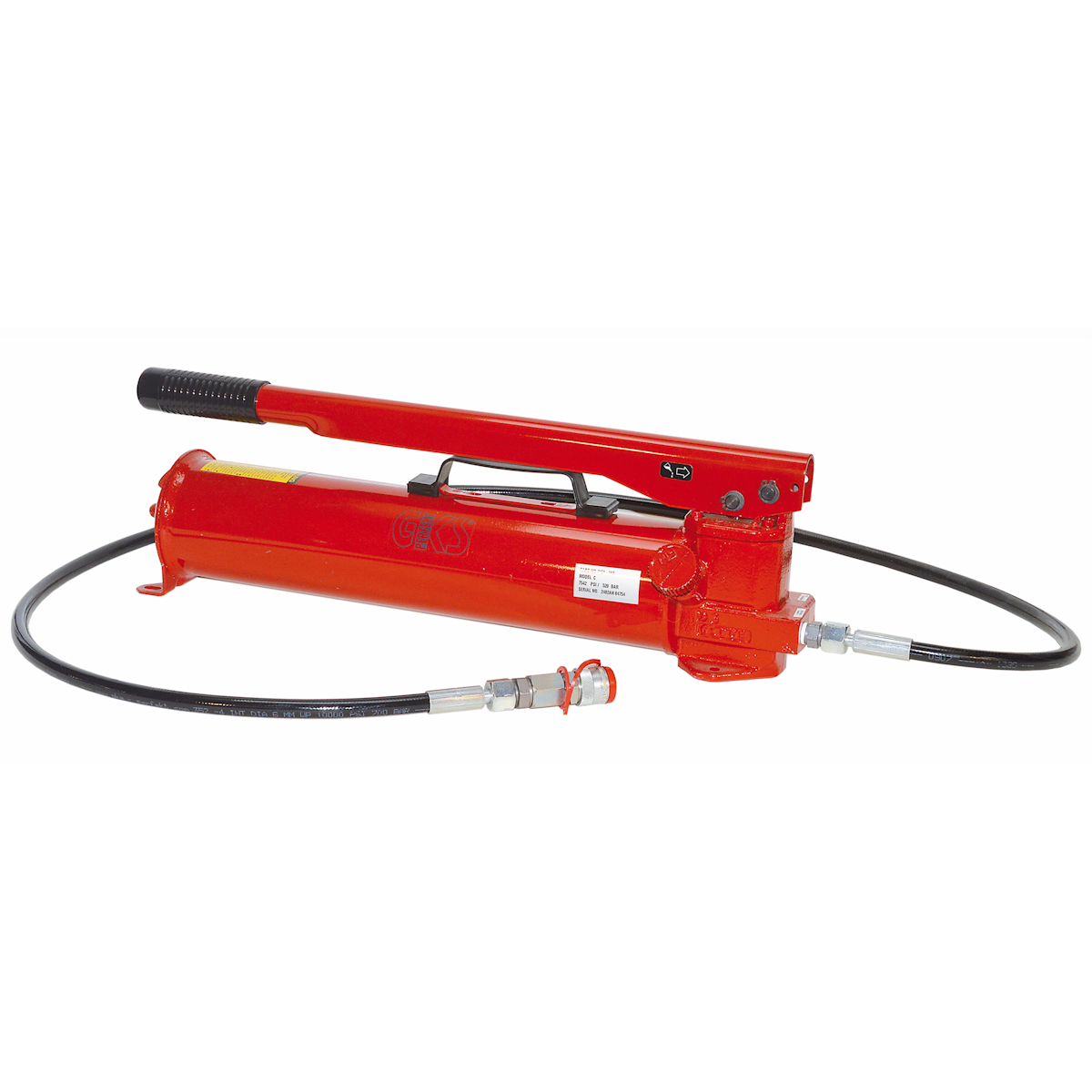

Hand Pump PV

dimension sheet

PV

Working Pressure (preset)	7,542 psi (520 bar)
Flow rate stage 1	42 cm³/ 435 psi / 30 bar
Flow rate stage 2	2,6 cm³ / 7,542 psi / 520 bar
Tank Capacity	2,25 l
Overall Dimensions (LxWxH)	18.3 x 5.6 x 6.9" (465 x 143 x 175 mm)
Tare Weight with oil (whithout hoses)	27 lbs (12 kg)
Hose (6.6 ft / 2 m), quick-release fastener	2
For gks toe jacks	Je 2 x V5, V5-EX, V5K-EX, V10, V10-EX, V15, V20, 1 x V30-EX (430 bar)
Item Number	10198
