Electric Pumps

dimension sheet

PE

Working Pressure (preset)	7.542 psi (520 bar)
Flow rate Stage 1	2,5 l
Flow rate Stage 2	0,3 l / min
Tank Capacity	4,8 l
Overall Dimensions (LxWxH)	17.7 x 12.2 x 19.5" (450 x 310 x 495 mm)
Tare Weight with oil (without hoses)	66 lbs (30 kg)
Hose (10 ft / 3 m), quick-release fastener	2
Electric connection	230 V / 50 Hz
For use with gks toe jacks	each 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar)
Item Number	10199

dimension sheet

Working Pressure (preset)	7,542 psi (520 bar)
Flow rate Stage 1	2,5 l
Flow rate Stage 2	0,3 l / min
Tank Capacity	4,8 l
Overall Dimensions (LxWxH)	25.6 x 12.2 x 19.5" (650 x 310 x 495 mm)
Tare Weight with oil (without hoses)	77 lbs (35 kg)
Hose (10 ft / 3 m), quick-release fastener with 2-fold distributor (shut-off valve)	2
Electric Connection	230 V / 50 Hz
For use with gks toe jacks	each 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar)
Item Number	13591

dimension sheet

Working Pressure (preset)	7,542 psi (520 bar)
Flow rate Stage 1	2,5 l
Flow rate Stage 2	0,3 l / min
Tank Capacity	4,8 l
Overall Dimensions (LxWxH)	25.6 x 12.2 x 19.5" (650 x 310 x 495 mm)
Tare Weight with oil (without hoses)	97 lbs (44 kg)
Hose (10 ft / 3 m), quick-release fastener with 4-fold distributor (shut-off valve)	4
Electric Connection	230 V / 50 Hz
For use with gks toe jacks	each 4 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar)
Item Number	13592

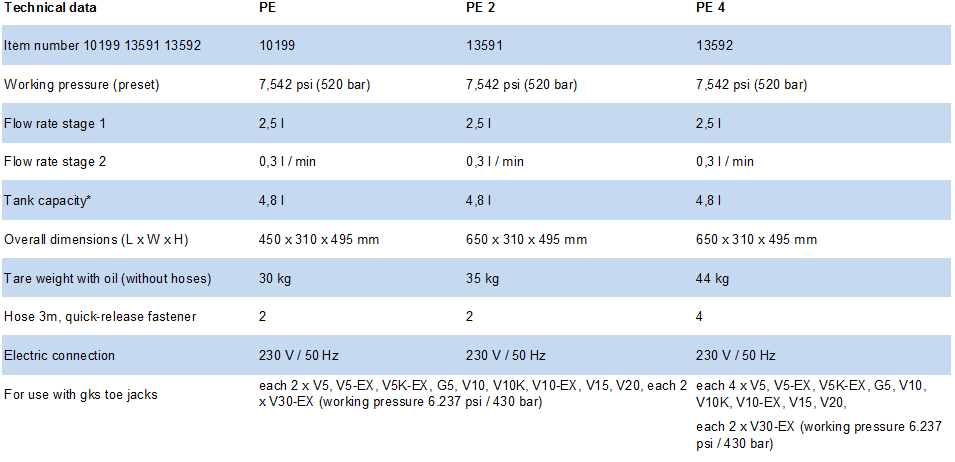

Click on chart to enlarge!

The option „Bigger Oil Reservoir“ is mandatory to operate 4 GKS toe jacks V30-EX, working pressure setting 6,237 psi / 430 bar.

* quick-release fastener with 2-fold distributor (shut-off valve)
** quick-release fastener with 4-fold distributor (shut-off valve)
